Sle / SLE-H series
Manual screw-on version – in-line flow – p.max 200/400 bar
Technical characteristics
Connection type
External surface of tubes smooth
Attachment equipment to test
Column FA of the dimensional table
Hose connection
Column UNSCRUPULOUS of the dimensional table
Drive
Manual screwing, for locking and releasing +/- 90° rotation
Pressure Exercise SLE
0-200 BAR – FOR VACUUM PRESSURES ASK FOR SPECIFICATIONS
Pressure Exercise SLE-H
0-400 BAR – FOR VACUUM PRESSURES ASK FOR SPECIFICATIONS
Central Conduit
Free passage
Specifications
Adjustable locking system

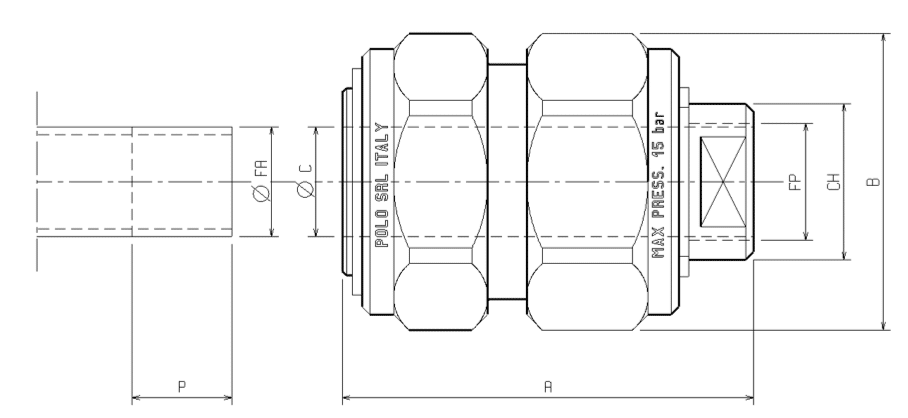

Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | UNGAUGED | UNSCRUPULOUS | UNBOUNDED | FA | VANDALISM | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| SLE06-8÷16-14 | 52.5 | 38 | 19 | 1/4′′G | 6.5÷16.5 | 6÷16 | 21 | 0.23 |
| SLE12-16÷24-12 | 60 | 48 | 24 | 1/2”G | 16.5÷24.5 | 16÷24 | 24 | 0.42 |
| SLE14-24÷34-34 | 74 | 62 | 32 | 3/4”G | 26.5÷34.5 | 26÷34 | 30 | 0.75 |
