Sle-p series
Pneumatic version – in-line flow – p.max 50 bar
Technical characteristics
Connection type
Fillets interior female ed shaped elements
Attachment equipment to test
Column FA of the dimensional table
Hose connection
Column UNSCRUPULOUS of the dimensional table
Drive
Push-pull Manual
Material
Stainless steel
Exercise Pressure
0-400 bar
Central Conduit
Free passage
Specifications
Additional safety system against inadvertent disconnection
- All IGEVO series connectors are equipped with a red ring, which functions to visually signal whether the connection has been made correctly and whether the test can begin.

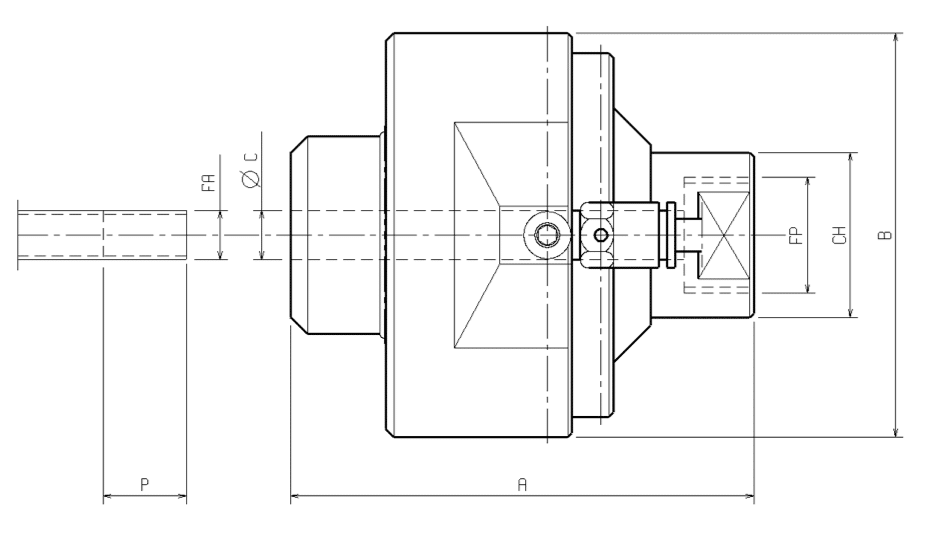

Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | UNGAUGED | UNSCRUPULOUS | UNBOUNDED | FA | VANDALISM | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| SLE06-6÷16-14P | 57.5 | 50 | 19 | 1/4′′G | 6.5÷16.5 | 6÷16 | 21 | 0.42 |
| SLE12-16÷26-12P | 70 | 80 | 24 | 1/2”G | 16.5÷26.5 | 16÷26 | 24 | 0.65 |
