Igl series
Manual version with lever – 90 flow° free passage – p.max 350 bar
Technical characteristics
Connection type
Fillets interior female ed shaped elements
Attachment equipment to test
Column FA of the dimensional table
Hose connection
Column UNSCRUPULOUS of the dimensional table
Drive
Manual with lever
Material
Stainless steel
Exercise Pressure
0-350 bar
Central Conduit
Free passage

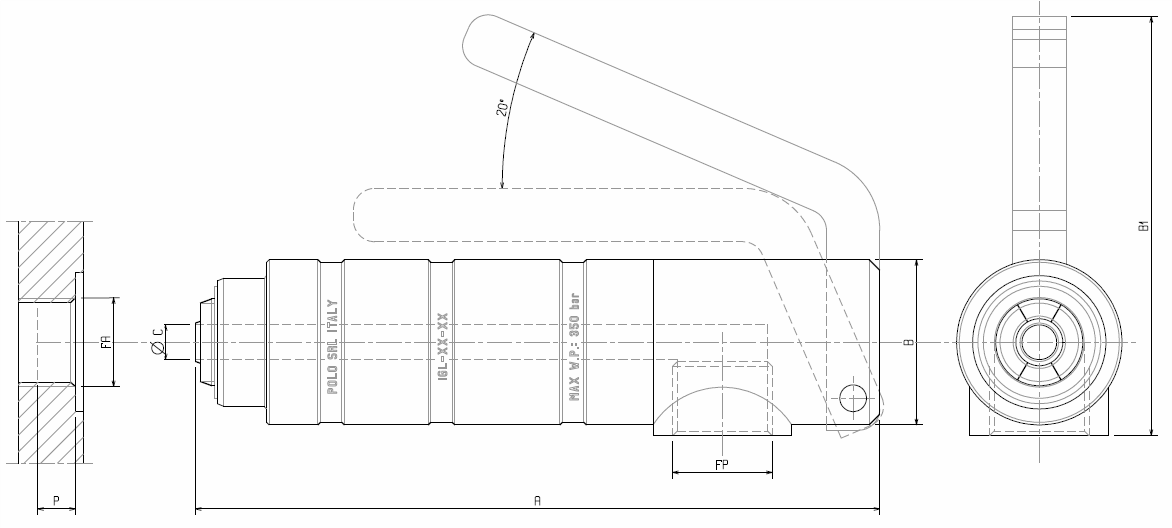

Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | B1 | UNSCRUPULOUS | UNBOUNDED | FA(*) | VANDALISM | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| IGL-18-14 | 120 | 27 | 78.5 | 1/4′′G | 4.5 | 1/8′′G | 6 | 0.20 |
| IGL-14-14 | 120 | 27 | 78.5 | 1/4′′G | 4.5 | 1/4′′G | 6 | 0.20 |
| IGL-38-38 | 130 | 31 | 78.5 | 3/8”G | 6.5 | 3/8”G | 7 | 0.35 |
| IGL-12-12 | 140 | 35 | 78.5 | 1/2′′G | 8 | 1/2′′G | 8 | 0.45 |
| IGL-34-34 | 140 | 45 | 90 | 3/4′′G | 12 | 3/4′′G | 8 | 0.60 |
| IGL-1-1 | 160 | 55 | 90 | 1”G | 16 | 1”G | 10 | 0.80 |
