Igevo-a series
Manual version – online flow – p.max 50 bar
Technical characteristics
Connection type
Fillets exteriors male ed shaped elements
Attachment equipment to test
Column FA of the dimensional table
Hose connection
Column UNSCRUPULOUS of the dimensional table
Drive
Push-pull Manual
Material
Anodized aluminum and stainless steel
Exercise Pressure
0-50 BAR – FOR VACUUM PRESSURES ASK FOR SPECIFICATIONS
Central Conduit
Free passage
Specifications
Additional safety system against inadvertent disconnection

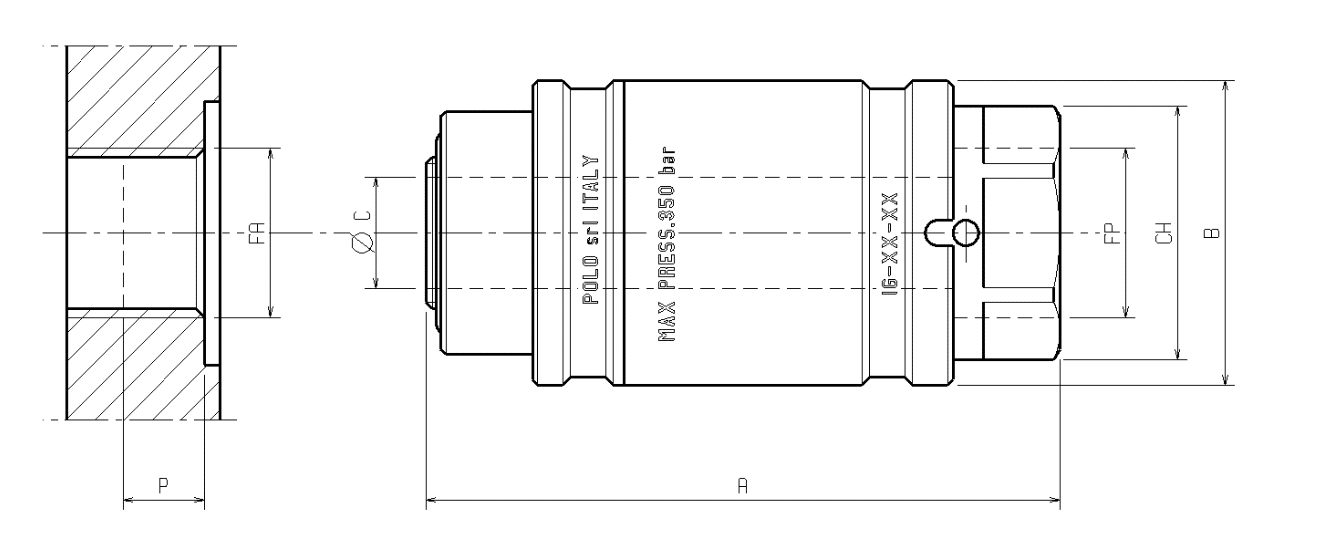

Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | UNGAUGED | UNSCRUPULOUS | UNBOUNDED | FA(*) | VANDALISM | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| IGEVO-18-14A | 100 | 28 | 22 | 1/4′′G | 4 | 1/8′′G | 7.5 | 0.10 |
| IGEVO-14-14A | 100 | 28 | 22 | 1/4′′G | 4 | 1/4′′G | 7.5 | 0.10 |
| IGEVO-38-38A | 103 | 32 | 27 | 3/8”G | 6.5 | 3/8”G | 9.5 | 0.15 |
| IGEVO-12-12A | 106.5 | 37.5 | 30 | 1/2′′G | 7.5 | 1/2′′G | 9.5 | 0.25 |
| IGEVO-34-34A | 125.5 | 43 | 36 | 3/4′′G | 12 | 3/4′′G | 10 | 0.35 |
| IGEVO-1-1A | 140 | 50 | 45 | 1”G | 15 | 1”G | 15 | 0.45 |
| IGEVO-1.1/2-1.1/2A | 160 | 60 | 50 | 1-1/2”G | 25 | 1-1/2”G | 17.5 | 0.65 |
The graft connection and disconnection steps can only be carried out when the working pressure is zero.
