Ig-afp series
Pneumatic version – free passage – fluid testing flow “in line” – p. max 50 bar
Technical characteristics
Connection type
Fillets interior female ed shaped elements
Attachment equipment to test
Column FA of the dimensional table
Hose connection
Column UNSCRUPULOUS of the dimensional table
Drive
Tyre
Material
Anodized aluminum and stainless steel
Exercise Pressure
0-50 bar
Central Conduit
Free passage
Specifications
Extremely stable connection; considerable initial connection force; large flow rates; high reduction in pressure drops.
- Compressed air pressure for push button operation: up to 5 bars.
- Our IG-AFP series quick couplings have a pneumatic pulsant drive with monostable function, which is used to carry out the connection and disconnection phases.
- The clutch maintains the connection even in the event of an accidental interruption of the compressed air supply.

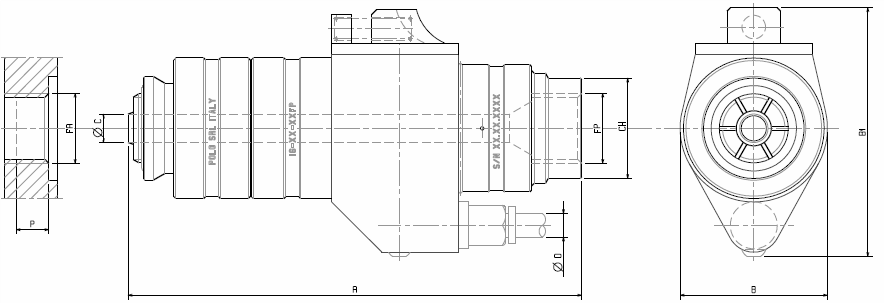

Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | B1 | UNSCRUPULOUS | UNBOUNDED | UNBOUNDED | UNGAUGED | FA | VANDALISM | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| IG-18-14AFP | 110 | 30 | 55 | 1/4′′G | 6 | 5 | 22 | 1/8′′G | 6 | 0.30 |
| IG-14-14AFP | 110 | 30 | 55 | 1/4′′G | 6 | 6.5 | 22 | 1/4′′G | 6 | 0.30 |
| IG-38-38AFP | 111 | 37 | 66 | 3/8”G | 6 | 8.5 | 24 | 3/8”G | 10 | 0.40 |
| IG-12-12AFP | 135.5 | 44 | 73 | 1/2′′G | 6 | 11 | 30 | 1/2′′G | 11 | 0.60 |
| IG-34-34AFP | 135.5 | 50 | 78 | 3/4′′G | 6 | 15 | 36 | 3/4′′G | 12.5 | 1.00 |
| IG-1-1AFP | 167 | 64 | 92 | 1”G | 6 | 20 | 46 | 1”G | 15 | 1.30 |
The graft connection and disconnection steps can only be carried out when the working pressure is zero.
Initial connection force
IG-18-14AFP: 10 Kg |
IG-14-14AFP: 10 Kg |
IG-38-38AFP: 17 Kg |
IG-12-12AFP: 27 Kg |
IG-34-34AFP: 36 Kg |
IG-1-1AFP: 60 Kg |
