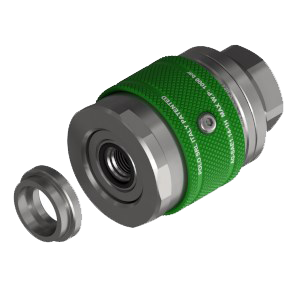

Agp-sae series
Manual version – SAE flange round section – p.max 400 bar
Technical characteristics
Drive
Push-pull Manual
Material
Stainless steel
Exercise Pressure
0-400 bar
Central Conduit
Free passage
Specifications
Additional safety system against inadvertent disconnection

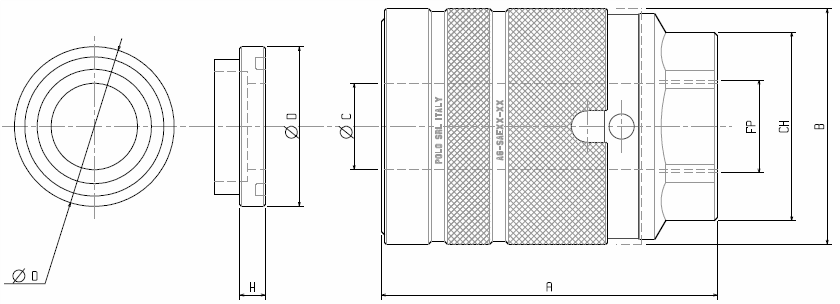

Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | UNGAUGED | UNSCRUPULOUS | UNBOUNDED | UNBOUNDED | H | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| AGP-SAE12-12 | 80 | 55 | 41 | 1/2′′G | 10 | 30.2 | 6.7 | 1 |
| AGP-SAE34-34 | 100 | 75 | 50 | 3/4”G | 13 | 38.1 | 6.7 | 2 |
| AGP-SAE1-1 | 100 | 85 | 55 | 1′′G | 19 | 44.4 | 8 | 3.5 |
