Agp-sae/s series
Manual version – shaped SAE flange – p.max 400 bar
Technical characteristics
Material
Stainless steel
Exercise Pressure
0-400 bar
Central Conduit
Free passage
Specifications
Additional safety system against inadvertent disconnection

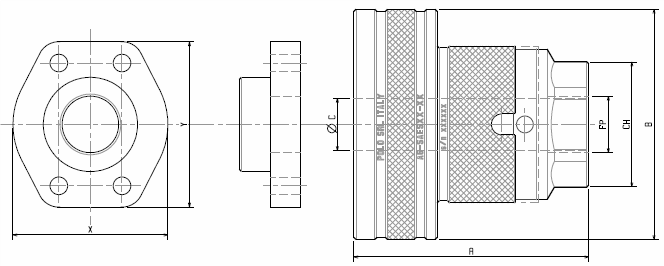

Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | UNGAUGED | UNSCRUPULOUS | UNBOUNDED | VISAGE | X | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| AG-SAE12S-12 | 87.5 | 75 | 41 | 1/2′′G | 10 | 57 | 47 | 4 |
| AG-SAE34S-34 | 100 | 90 | 50 | 3/4”G | 15 | 66 | 49 | 6 |
| AG-SAE1S-1 | 112.5 | 110 | 55 | 1′′G | 20 | 71 | 53 | 8 |
The graft connection and disconnection steps can only be carried out when the working pressure is zero.
