Ag-v series
Manual version – in-line flow – with check valve – p.max 400 bar
Technical characteristics
Connection type
Fillets exteriors male ed shaped elements
Attachment equipment to test
Column FA of the dimensional table
Hose connection
Column UNSCRUPULOUS of the dimensional table
Drive
Push-pull Manual
Material
Stainless steel
Exercise Pressure
0-400 BAR – FOR VACUUM PRESSURES ASK FOR SPECIFICATIONS
Central Conduit
With integrated check valve
Specifications
Double safety system against inadvertent disconnection

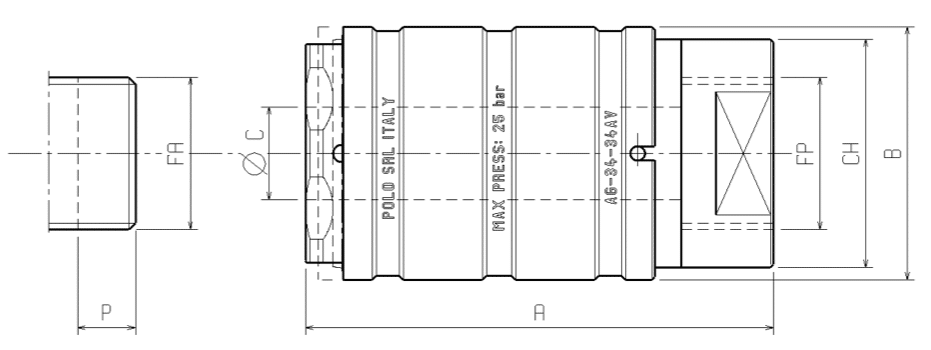

Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | UNGAUGED | UNSCRUPULOUS | UNBOUNDED | FA(*) | VANDALISM | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| AG-14-14V | 75 | 29 | 22 | 1/4′′G | 7 | 1/4′′G | 8 | 0.20 |
| AG-38-38V | 81 | 38 | 29 | 3/8”G | 8.5 | 3/8”G | 10.5 | 0.25 |
| AG-12-12V | 81 | 38 | 29 | 1/2′′G | 12 | 1/2′′G | 10.5 | 0.35 |
| AG-34-34V | 85 | 44 | 36 | 3/4′′G | 16 | 3/4′′G | 12 | 0.50 |
| AG-1-1V | 90 | 54 | 46 | 1”G | 20 | 1”G | 15 | 0.60 |
The graft connection and disconnection steps can only be carried out when the working pressure is zero.
