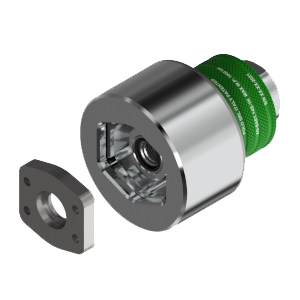

Ag-sae/s-h series
Manual version – shaped SAE flange – p.max 1000 bar
Technical characteristics
Material
Stainless steel
Exercise Pressure
0-1000 bar
Central Conduit
Free passage
Specifications
Additional safety system against inadvertent disconnection
Size chart
(indicative measurements, in mm)
| CODE | A | UNEXPECTED | UNGAUGED | UNSCRUPULOUS | UNBOUNDED | VISAGE | X | WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| AG-SAE12S-12H | 120 | 100 | 41 | 1/2′′G | 10 | 57 | 47 | 6 |
| AG-SAE34S-34H | 130 | 120 | 50 | 3/4”G | 15 | 71 | 53 | 8 |
| AG-SAE1S-1H | 155 | 130 | 55 | 1′′G | 20 | 80 | 66 | 10 |
The graft connection and disconnection steps can only be carried out when the working pressure is zero.
